Glued laminated timber and GLT bearing systems

Glued laminated timber is a formable building material with high load-bearing capacity in relation to dead weight.

It consists of boards glued together with their fibres parallel. With the use of tapered finger joints and gluing,
it is possible to increase the natural growth both in length and width.

At WIEHAG you can draw from a full range of products.

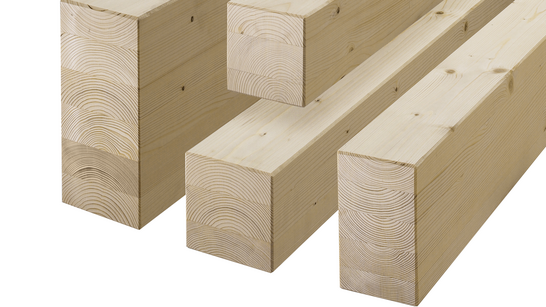

GLT as custom-sized and dimensional timber

We offer GLT as custom-sized and dimensional timber, on request also ready-bound and with the corresponding fasteners.

On request, we also supply our BSH with PEFC or FSC® certification.

You can find our standard dimensions and standard qualities here in the product data sheet.

[Translate to Englisch:] Brettschichtholz Kommissionen

Bearing systems and beam shapes

There are no limits to the design of the bearing system: We offer straight and curved beams in almost all shapes and sizes up to an individual component length of 50 metres.

Larger spans can be bridged with composite support structures (e.g. trusses or arches). You can find more detailed information about our structural components in our “Beam shapes” product data sheet.

Beam shapes at a glance

Parallel beams or single-pitched beams

Double tapered beams with straight or bent lower boom

Fish-bellied girders

Double-tapered fish-bellied girders

Free-form girders

Trussed support structure

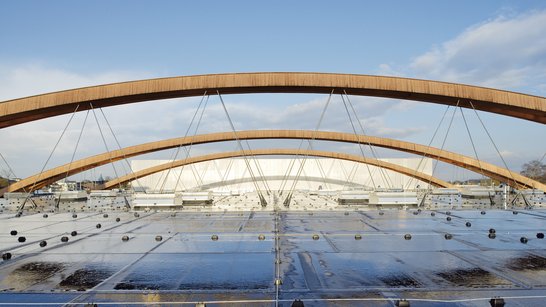

Arched beams or arched rafters

Free span

Trussed girder

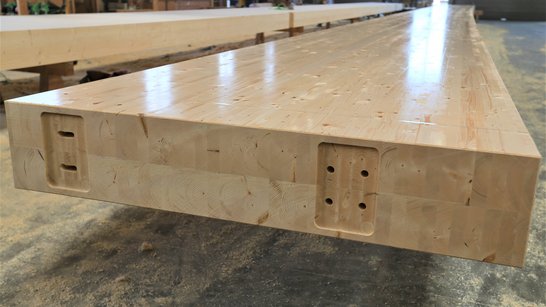

Wood coating

From simple assembly protection to permanent coating

We offer the following variants for the wood coating of GLT bearing systems:

Assembly protection (W)
Weather protection (W)
UV protection (W)
Chemical wood protection:
- Blue stain (B)
- Fungi (P)
- Insect prevention (Iv)
- Termite prevention (T)
Paint coating

Find out more in our product data sheet on the subject of wood coating.

[Translate to Englisch:] Beschichtungen und Anstriche

Do you have a question about our GLT bearing systems? Or would you like to know more about our services for timber engineering partners?

Contact us now without obligation

Frame system

The WIEHAG frame corner

The WIEHAG frame corner is our patented support structure solution with simple site connection for quick assembly. The system sets new standards in terms of cost effectiveness. It also meets aesthetic requirements.

Three-hinge and two-hinge frame versions
Large spans possible
No transport restrictions
Pre-assembly of all fasteners in the factory
Fine adjustment of frame geometry possible on site

You'll find further information about the frame corner in the product data sheet.

[Translate to Englisch:] WIEHAG Rahmeneck

For large beam widths

XXXL block-bonded composite components

Block-bonded cross-sections or composite components are used for high static loads and in the case of increased fire protection requirements. For beam widths greater than 260 mm, several glued laminated timber cross-sections can be glued together to form composite components.

One application is block-bonded supports as load-bearing structural components for high-rise timber construction, or block-bonded cross supports (fixed on both sides) for hall construction to reinforce buildings.

We offer you the following services at WIEHAG:

Tailor-made solutions for every project
Technical advice and support
Factory-assembled steel connectors
Worldwide deliveries including logistics planning and just-in-time delivery
Wide range of specifications available for different types of wood, coatings, etc.

You'll find further information in the product data sheet.

[Translate to Englisch:] WIEHAG Blockverleimte Stütze

The WIEHAG complete hall

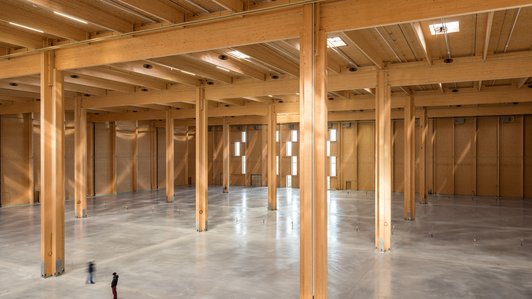

Cargo iLogistics Center – WIEHAG complete hall

The WIEHAG complete solution consists of the bearing system and the building shell. One prime example: The logistics hall for Cargo-Partner in Fischamend . Everything comes from WIEHAG: the GLT bearing system, the fixed supports, beams, purlins, connection systems and bracings. The building shell was constructed with WIEHAG roof and wall panels, and even the larch wood façade was produced at WIEHAG.

Product data sheet complete construction hall
